| KTM's profilation of this bike |
| ON THE TARMAC OR IN THE DIRT…
With KTM’s SMC off-road wheel kit you get the best of both worlds. This off-road wheel kit achieves the exact specifications of KTM’s powerful 450 SX and 525 SX motocross models and allows the 450 SMC and 525 SMC to be easily converted for dedicated off-road riding. Better yet, these complete wheel kits are delivered, at NO charge, directly to new ’04 450 and 525 SMC owners.
|
|
General information |
|
Motorcycle name
|

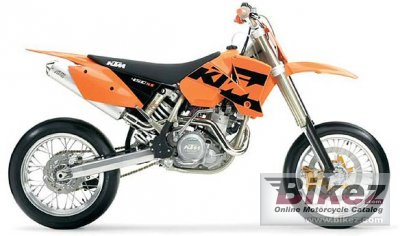

KTM 450 SMC USA |
|
Model year
|
2004 |
|
Category
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
449.4 ccm (27.42 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Torque
|
55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium molybdenum |
|
Front suspension
|
WP-USD 48/26 MA/PA |
|
Rear suspension
|
WP-PDS-DA shock absorber |
|
Front tire
|
120/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
106.3 kg (234.4 pounds) |
|
Seat height
|
914 mm (36.0 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
675 mm (26.6 inches) If adjustable, highest setting. |
|
Overall width
|
450 mm (17.7 inches) |
|
Ground clearance
|
321 mm (12.6 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
