| KTM's profilation of this bike |
| Eleven times in a row, victory at the notorious Rallye Dakar has now gone to KTM. Since the displacement reduction to 450 cc, the KTM 450 Rally is the bike to beat – it was no accident that the last two years Marc Coma and Cyril Despres triumphed with this bike at what probably is the toughest motorcycle race of the planet, and there is a reason why much more than half of the grid has been using bikes from Mattighofen for years. |
|
General information |
|
Motorcycle name
|

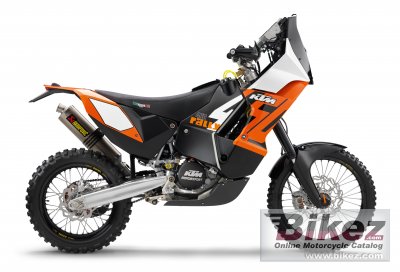

KTM 450 Rally Replica |
|
Year model
|
2013 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
449.3 ccm (27.42 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Radial cylinder head with DLC coated finger followers |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Keihin EMS |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, Brembo hydraulics |
|
Driveline
|
14:52 (13:52). Primary ratio 32:76. X-Ring 5/8 x 1/4´. |
|
Exhaust system
|
Akrapovic Exhaust System |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4. Subframe: Aluminium. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP-USD |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
1.60 x 21´´; 2.15 x 18´´ Excel |
|
Physical measures and capacities |
|
Dry weight
|
111.0 kg (244.7 pounds) |
|
Seat height
|
970 mm (38.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
345 mm (13.6 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
Racing tuned version. |
