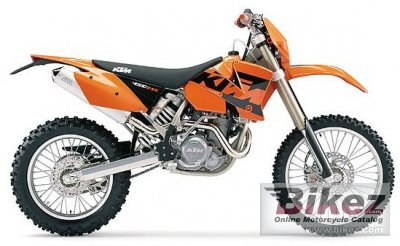

KTM 450 EXC Racing 20042004 KTM 450 EXC Racing specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| Controllable power output together with racing oriented peak power characterise the 450 EXC as the ideal 4-stroke competition enduro in it´s class. |
| General information | |
|---|---|
| Model | KTM 450 EXC Racing |
| Year | 2004 |
| Category | Enduro / offroad |
| Rating | 4.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 447.9 ccm (27.33 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 89.0 x 72.0 mm (3.5 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin MC FCR 39 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan digital |
| Lubrication system | Pressure lubrication with 3 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chrome molybdenum |
| Trail | 64 mm (2.5 inches) |
| Front suspension | WP-USD 48 MA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP-PDS-shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 216 mm (8.5 inches) |
| Physical measures and capacities | |
| Dry weight | 117.2 kg (258.4 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Alternate seat height | 675 mm (26.6 inches) If adjustable, highest setting. |
| Overall width | 450 mm (17.7 inches) |
| Ground clearance | 385 mm (15.2 inches) |
| Wheelbase | 1481 mm (58.3 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Oil capacity | 1.30 litres (1.37 US quarts) |
| Other specifications | |
| Color options | Orange |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 15W-50 Synthetic |
| Brake fluid | DOT 4 |
| Coolant | 1.00 litres (0.26 US gallons) |
| Spark plugs | NGK DCPR8E, NGK DCPR8EIX |
| Chain size | 520 |
| Chain links | 118 |
| Sprockets | 15/45 (front/rear) |
| Fork tube size | 48 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
