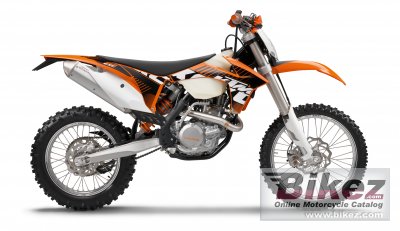

KTM 450 EXC 20122012 KTM 450 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The 450 EXC can justifiably claim to be the most widely ridden bike in enduro sport and a serial winner in the E2 World Championship. The top dog has been revamped and slimmed down in practically every aspect - from the frame to the electronic injection and the engine management system to the material selection. |
| General information | |
|---|---|
| Model name | KTM 450 EXC |
| Model year | 2012 |
| Category | Enduro / offroad |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 449.3 ccm (27.42 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | OHC with rocker levers |
| Compression | 11.8:1 |
| Bore x stroke | 95.0 x 63.4 mm (3.7 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Keihin EFI, flow restrictor 42 mm |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Keihin EMS |
| Lubrication system | Pressure lubrication with 2 oil pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch, Brembo hydraulics |
| Driveline | 14:52 (13:52). Primary ratio 32:76. |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4. Subframe: Aluminium. |
| Rake (fork angle) | 26.5° |
| Front suspension | WP-USD 48 mm |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP-PDS shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Wheels | 1.60 x 21´´; 2.15 x 18´´ Excel |
| Physical measures and capacities | |
| Dry weight | 111.0 kg (244.7 pounds) |
| Seat height | 970 mm (38.2 inches) If adjustable, lowest setting. |
| Ground clearance | 345 mm (13.6 inches) |
| Wheelbase | 1482 mm (58.3 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Orange/white/black |
| Starter | Electric & kick |
