| KTM's profilation of this bike |
| As one of the most successful Enduro bikes of recent years, the 450 EXC still has but one aim in the E2 class: the world championship title. A new frame design, the perfected settings and an ultra-powerful SOHC engine with the latest technology once again raise the bar for the competition. |
| General information |
|---|

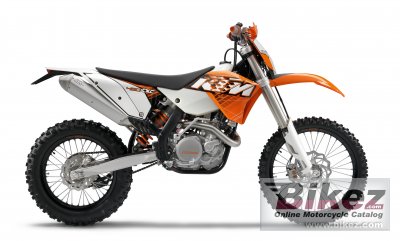

| Model: | KTM 450 EXC |
| Year: | 2011 |
| Category: | Enduro / offroad |
| Rating: | 72.5 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 449.30 ccm (27.42 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 11.9:1 |
| Bore x stroke: | 95.0 x 63.4 mm (3.7 x 2.5 inches) |
| Fuel system: | Carburettor. Keihin FCR-MX 39 |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | Kokusan |
| Lubrication system: | Pressure lubrication with 3 oil pumps |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Wet mDouble disk clutch, operated hydraulically |
| Driveline: | 15:45 (13:52). Primary drive: 33:76. |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central double-cradle-type 25CrMo4 steel. Subframe: Aluminium. |
| Rake (fork angle): | 26.5° |
| Front suspension: | WP USD 48 mm (1.89 in) |
| Front wheel travel: | 185 mm (7.3 inches) |
| Rear suspension: | WP PDS shock absorber |
| Rear wheel travel: | 185 mm (7.3 inches) |
| Front tyre: | 90/90-21 |
| Rear tyre: | 140/80-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | 1.60 x 21in., 2.15 x 18in. Excel |
| Physical measures and capacities |
|---|
| Dry weight: | 113.9 kg (251.1 pounds) |
| Seat height: | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 380 mm (15.0 inches) |
| Wheelbase: | 1,475 mm (58.1 inches) |
| Fuel capacity: | 9.50 litres (2.51 gallons) |
| Other specifications |
|---|
| Color options: | Orange/white/black |
| Starter: | Electric & kick |
