| KTM's profilation of this bike |
| With its broad power band, great top-end performance and optimal traction, the 400 EXC Racing is the all-rounder in the KTM off-road program. The 400 EXC Racing is the most sought-after motorcycle on the KTM Adventure tours.
|
|
General information |
|
Model name
|

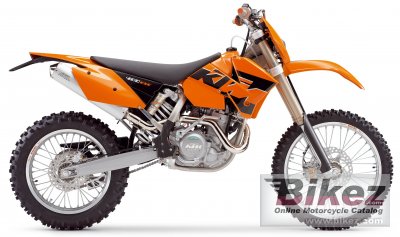

KTM 400 EXC Racing |
|
Year model
|
2005 |
|
Type
|
Cross / motocross |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
398.2 ccm (24.30 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
89.0 x 64.0 mm (3.5 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 39 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan digital 4K-3B |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium molybdenum |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
WP-USD 48 mm |
|
Rear suspension
|
WP-PDS-shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front brakes
|
Single disc |
|
Diameter
|
216 mm (8.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
113.5 kg (250.2 pounds) |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
