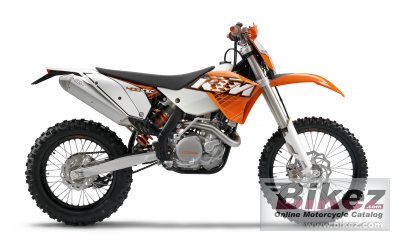

KTM 400 EXC 20112011 KTM 400 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| With the 400 EXC, KTM is once again raising for universal quality. The combination of efficient, easy-to-control engine characteristics and perfect handling make it the ideal all-rounder for all conceivable off-road challenges. |
| General information | |
|---|---|
| Model | KTM 400 EXC |
| Model year | 2011 |
| Category | Enduro / offroad |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 393.4 ccm (24.01 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 11.1:1 |
| Bore x stroke | 95.0 x 55.5 mm (3.7 x 2.2 inches) |
| Fuel system | Carburettor. Keihin FCR-MX 39 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan |
| Lubrication system | Pressure lubrication with 3 oil pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet mDouble disk clutch, operated hydraulically |
| Driveline | 15:45 (13:52). Primary drive: 33:76. |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4. Subframe: Aluminium. |
| Rake (fork angle) | 26.5° |
| Front suspension | WP USD 48 mm (1.89 in) |
| Front wheel travel | 185 mm (7.3 inches) |
| Rear suspension | WP-PDS shock absorber |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Wheels | 1.60 x 21in., 2.15 x 18in. Excel |
| Physical measures and capacities | |
| Dry weight | 113.9 kg (251.1 pounds) |
| Seat height | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance | 380 mm (15.0 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Orange/white/black |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 KTM 400 EXC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2011 KTM 400 EXC for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Offroad capabilities for the 2011 KTM 400 EXC:  (82.4 out of 100)Click here for complete rating. |
|
