| KTM's profilation of this bike |
| With the newly developed 400 EXC, KTM introduces one of the most universal bikes for all types of off-road action. In addition to the new engine and the light chassis, it convinces above all with the perfect combination of efficient, easily ridable engine characteristics and perfect handling.
|
|
General information |
|
Model name
|

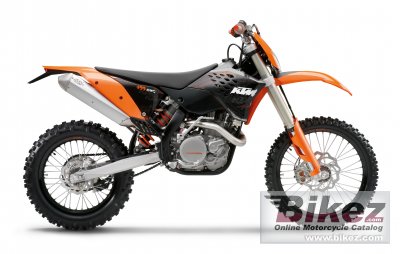

KTM 400 EXC |
|
Model year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
4.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
393.4 ccm (24.01 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.1:1 |
|
Bore x stroke
|
89.0 x 64.0 mm (3.5 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin FCR-MX 39 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan |
|
Lubrication system
|
Pressure lubrication with 3 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4. Aluminium 7020 subframe. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD 48 mm |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
113.9 kg (251.1 pounds) |
|
Seat height
|
985 mm (38.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Electric & kick |
