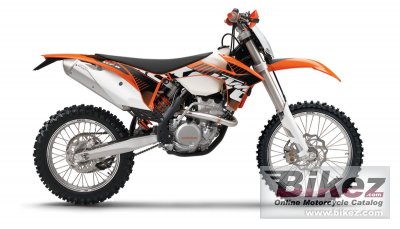

KTM 350 XCF-W 20122012 KTM 350 XCF-W specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| This bike will take the 450cc class by storm, all down to its incomparable lightness, easy control, high-performance engine and completely new chassis with improved PDS suspension – a combination that makes the competition cringe. Last season’s magnificent World MX successes suggest that we will achieve a similar result in the offroad world. |
| General information | |
|---|---|
| Model name | KTM 350 XCF-W |
| Year of manufacture | 2012 |
| Type | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 349.7 ccm (21.34 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Engine details | Titanium valves |
| Maximum RPM | 12000 |
| Compression | 13.2:1 |
| Bore x stroke | 88.0 x 57.5 mm (3.5 x 2.3 inches) |
| Fuel system | Injection |
| Ignition | Contactless controlled fully electronic ignition with digital ignition adjustment |
| Lubrication system | Pressure circulation lubrication with two Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multidisc clutch in oil bath/hydraulically activated |
| Driveline | Primary transmission 24:73 Final drive 13:52. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 80/100-21 |
| Rear tire | 100/90-19 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Excel AL7 rims with silver anodized stripes, |
| Physical measures and capacities | |
| Dry weight | 107.0 kg (235.9 pounds) |
| Seat height | 970 mm (38.2 inches) If adjustable, lowest setting. |
| Ground clearance | 345 mm (13.6 inches) |
| Wheelbase | 1482 mm (58.3 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Other specifications | |
| Color options | Orange/black/white |
| Starter | Electric & kick |
