KTM 350 SX-F 20112011 KTM 350 SX-F specifications, pictures, reviews and rating |

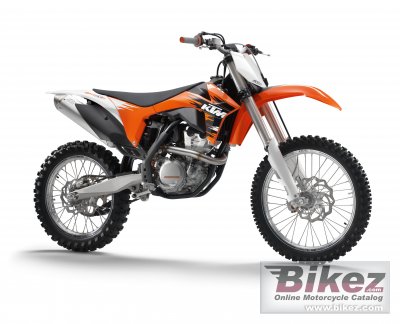

2011 KTM 350 SX-F. Image credits - KTM.
| KTM's profilation of this bike |
| With a new engine, fuel injection system and smaller displacement, new bodywork, new chassis - in fact, a whole new concept. What with the first Grand Prix victory and racing to the top of the overall standings in the MX1 class after only two races, maybe even the beginning of a new era in motocross ... |
| General information | |
|---|---|
| Model | KTM 350 SX-F |
| Year of manufacture | 2011 |
| Type | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 349.7 ccm (21.34 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 13.5:1 |
| Bore x stroke | 88.0 x 57.5 mm (3.5 x 2.3 inches) |
| Fuel system | Carburettor. Keihin EFI, throttle body 42 mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Keihin EMS |
| Lubrication system | Pressure lubrication with 2 oil pumps |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch, operated hydraulically |
| Driveline | 14:50. Primary drive: 24:73. |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4. Subframe: Aluminium. |
| Rake (fork angle) | 26.5° |
| Front suspension | WP USD 48 mm (1.89 in) |
| Front wheel travel | 185 mm (7.3 inches) |
| Rear suspension | WP-Monoshock with linkage |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front tire | 80/100-21 |
| Rear tire | 110/90-19 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Wheels | 1.60 x 21in., 2.15 x 19in. Excel |
| Physical measures and capacities | |
| Dry weight | 103.9 kg (229.1 pounds) |
| Seat height | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance | 375 mm (14.8 inches) |
| Wheelbase | 1495 mm (58.9 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Orange/black |
| Starter | Electric |
