| KTM's profilation of this bike |
| The new 350 EXC-F´s lightweight frame made from high-quality chrome-molybdenum steel is distinguished by an extremely high level of lateral stiffness. It is also excellent at absorbing jolts introduced by the suspension system, whereby the playful handling and comfort of the 350 EXC-F have been further optimised. |
|
General information |
|
Model name
|

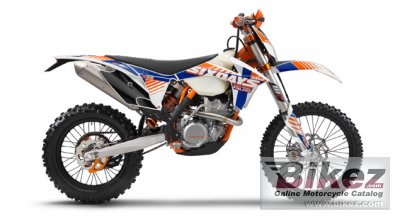

KTM 350 EXC-F Six Days |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
349.7 ccm (21.34 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
DOHC with finger followers |
|
Compression
|
12.3:1 |
|
Bore x stroke
|
88.0 x 57.5 mm (3.5 x 2.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI, flow restrictor 42 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Keihin EMS |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, Brembo hydraulics |
|
Driveline
|
14:52 (13:52). Primary ratio 24:73. X-Ring 5/8 x 1/4´. |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4. Subframe: Aluminium. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP-USD 48 mm |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
1.60 x 21´´; 2.15 x 18´´ Excel |
|
Physical measures and capacities |
|
Dry weight
|
107.5 kg (237.0 pounds) |
|
Seat height
|
970 mm (38.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
345 mm (13.6 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/blue/white/black |
|
Starter
|
Electric & kick |
|
Comments
|
Race tuned version |
