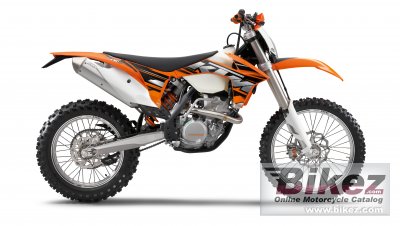

KTM 350 EXC-F 20132013 KTM 350 EXC-F specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The power of a 450! The handling of a 250! With peak power of more than 45 hp, the KTM 350 EXC and #8209;F is mixing it with the E2 class. Ultra-compact, with 57.5 mm stroke and 88 mm bore, and equipped with state-of-the-art electronic fuel injection, the engine offers a broad usable rev range. This delivers extremely efficient rideability and easily controllable traction on all terrain. |
| General information | |
|---|---|
| Motorcycle name | KTM 350 EXC-F |
| Year | 2013 |
| Category | Enduro / offroad |
| Rating | 2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 349.7 ccm (21.34 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 5.4 HP (3.9 kW)) |
| Bore x stroke | 88.0 x 57.5 mm (3.5 x 2.3 inches) |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Forced oil lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 5/8 x 1/4 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 108.5 kg (239.2 pounds) |
| Power/weight ratio | 0.0494 HP/kg |
| Seat height | 970 mm (38.2 inches) If adjustable, lowest setting. |
| Ground clearance | 345 mm (13.6 inches) |
| Wheelbase | 1482 mm (58.3 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Color options | Orange/black |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 KTM 350 EXC-F discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Rate motorcycles you know
Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities. The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 KTM 350 EXC-F and compare it to other bikes here.| Rating sample for this KTM bike | |
Reliability for the 2013 KTM 350 EXC-F:  (56.9 out of 100)Click here for complete rating. |
|
