| KTM's profilation of this bike |
| KTM is applying the recipe for success from the 2010 MX World Championship to the Enduro WC. The new 350 EXC-F combines the ultra-easy handling of a 250 with the powerful performance of a 450. The result is maximum chances of victory for professionals and maximum fun factor for amateurs. |
|
General information |
|
Model
|

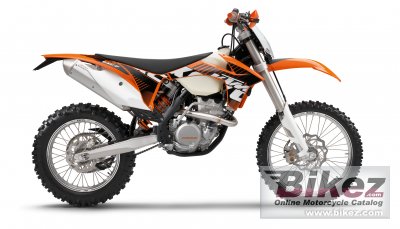

KTM 350 EXC-F |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
349.7 ccm (21.34 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
13.5:1 |
|
Bore x stroke
|
88.0 x 57.5 mm (3.5 x 2.3 inches) |
|
Fuel system
|
Carburettor. Keihin EFI, throttle body 42 mm |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication system
|
Forced oil lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch / hydraulically operated |
|
Driveline
|
14:52 (13:52). Primary gear ratio 24:73. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA PA |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension PDS 5018 DCC |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
108.5 kg (239.2 pounds) |
|
Seat height
|
970 mm (38.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
345 mm (13.6 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black/white |
|
Starter
|
Electric & kick |
