| KTM's profilation of this bike |
| The largest displacement two-stroke machine can keep up with the big bores while still feeling as nimble as its lower displacement counterparts. The 250 and 300 XC models come equipped with an electric starter offering a decisive advantage in tough offroad use with minimal extra weight. |
| General information |
|---|

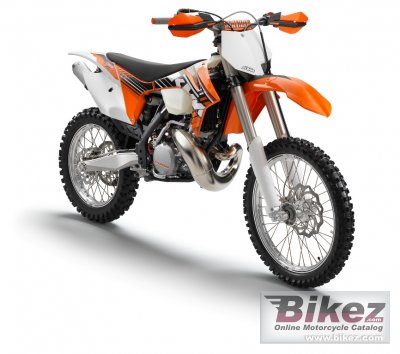

| Model: | KTM 300 XC |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | 72.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 293.00 ccm (17.88 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Engine details: | Reed intake and exhaust control |
| Bore x stroke: | 72.0 x 72.0 mm (2.8 x 2.8 inches) |
| Fuel system: | Carburettor |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system: | Mixture oil lubrication 1:60 |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi-disc clutch / hydraulically operated |
| Driveline: | 14:50. Primary gear 26:72. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle): | 26.5° |
| Front suspension: | WP Suspension Up Side Down 4860 MXMA CC |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP Suspension 5018 BAVP DCC |
| Rear wheel travel: | 317 mm (12.5 inches) |
| Front tyre: | 80/100-21 |
| Rear tyre: | 100/90-19 |
| Front brakes: | Single disc. Brake calipers on floating bearings |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. Brake calipers on floating bearings |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 104.0 kg (229.3 pounds) |
| Seat height: | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance: | 385 mm (15.2 inches) |
| Wheelbase: | 1,495 mm (58.9 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Other specifications |
|---|
| Color options: | Orange/black/white |
| Starter: | Electric & kick |
