| KTM's profilation of this bike |
| The responsiveness of the high-torque two-stroke machine can be varied in three stages by replacing springs in the TVC exhaust controller. The rider of the 300 EXC can also choose between two different ignition curves by means of a plug or a handlebar switch fitted as standard. |
|
General information |
|
Motorcycle name
|

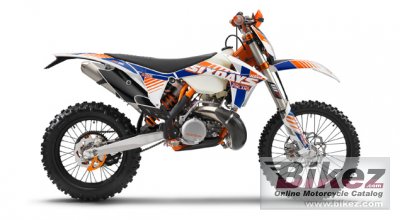

KTM 300 EXC Six Days |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
293.0 ccm (17.88 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
Reed intake and exhaust control |
|
Compression
|
12.8:1 |
|
Bore x stroke
|
72.0 x 72.0 mm (2.8 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 36 S AG |
|
Lubrication system
|
Mixture oil lubrication 1:60 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disk clutch / hydraulically operated |
|
Driveline
|
14:50 (13:50). Primary gear 26:72. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA PA |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension PDS 5018 DCC |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
104.0 kg (229.3 pounds) |
|
Seat height
|
960 mm (37.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
355 mm (14.0 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/white/black/blue |
|
Starter
|
Electric & kick |
|
Comments
|
Racing tuned. |
