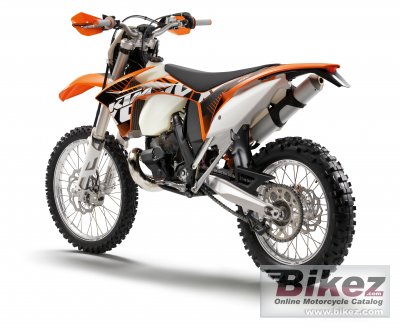

KTM 300 EXC 20122012 KTM 300 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| Sometimes nothing can take the place of engine capacity. Whenever it comes to brutal thrust, then it´s time for the 300 EXC. Your two-stroke machine is a real torque-wonder with unbelievable power that makes light of the bike´s low weight. |
| General information | |
|---|---|
| Model name | KTM 300 EXC |
| Year model | 2012 |
| Type | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 293.0 ccm (17.88 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | Reed intake and exhaust control |
| Compression | 12.8:1 |
| Bore x stroke | 72.0 x 72.0 mm (2.8 x 2.8 inches) |
| Fuel system | Carburettor. Keihin PWK 36 S AG |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch / hydraulically operated |
| Driveline | 14:50 (13:50). Primary gear 26:72. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC |
| Rear wheel travel | 330 mm (13.0 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 104.0 kg (229.3 pounds) |
| Seat height | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Ground clearance | 355 mm (14.0 inches) |
| Wheelbase | 1482 mm (58.3 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Orange/white/black |
| Starter | Electric & kick |
