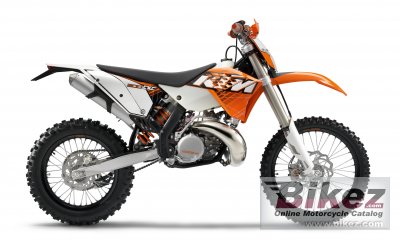

KTM 300 EXC 20112011 KTM 300 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| Erzberg? Hell´s Gate? Both? Whichever hardcore Enduro event is coming up, the 300 EXC is the right choice! An all-round optimised light-weight bike with an incredibly powerful torque that is easy to control at all times. The special highlight: the electric starter, supplied as standard. |
| General information | |
|---|---|
| Model name | KTM 300 EXC |
| Year | 2011 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 293.2 ccm (17.89 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Reed intake. |
| Power | 22.8 HP (16.6 kW)) |
| Compression | 12.8:1 |
| Bore x stroke | 72.0 x 72.0 mm (2.8 x 2.8 inches) |
| Fuel system | Carburettor. Keihin PWK 36 S AG |
| Ignition | Kokusan |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch, operated hydraulically |
| Driveline | 13:40 (13:50). Primary drive: 26:72. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4 steel. Subframe: Aluminium. |
| Rake (fork angle) | 26.5° |
| Front suspension | WP USD 48 mm (1.89 in) |
| Front wheel travel | 185 mm (7.3 inches) |
| Rear suspension | WP PDS shock absorber |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 103.1 kg (227.3 pounds) |
| Power/weight ratio | 0.2211 HP/kg |
| Seat height | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance | 385 mm (15.2 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Orange/white/black |
| Starter | Electric & kick |
| Electrical | YTX4L-BS, 12V 3Ah battery. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Spark plugs | NGK BR7ES |
| *) Always verify maintenance and service data with the bike owner's manual. | |
