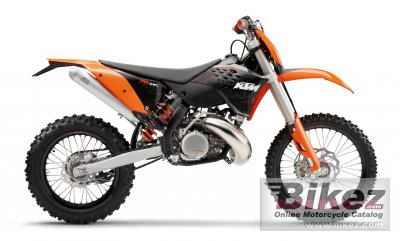

KTM 300 EXC 20092009 KTM 300 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| A powerpack which awaits the chance to stand up to the most brutal hardcore Enduro events such as Erzberg or Hell’s Gate. |
| General information | |
|---|---|
| Model name | KTM 300 EXC |
| Year of manufacture | 2009 |
| Type | Enduro / offroad |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 293.2 ccm (17.89 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Bore x stroke | 72.0 x 72.0 mm (2.8 x 2.8 inches) |
| Fuel system | Carburettor. Keihin PWK 36 S AG |
| Ignition | Kokusan |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4 steel |
| Rake (fork angle) | 26.5° |
| Front suspension | WP USD |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP PDS shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 103.1 kg (227.3 pounds) |
| Seat height | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance | 385 mm (15.2 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 KTM 300 EXC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
