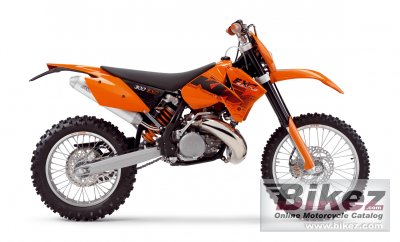

KTM 300 EXC 20062006 KTM 300 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| Workhorse and torque wonder. That’s the best way to describe the powerful 300 EXC. The trusty 300 EXC is still gliding up the mountain long after the others have overheated. |
| General information | |
|---|---|
| Motorcycle name | KTM 300 EXC |
| Model year | 2006 |
| Category | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 293.0 ccm (17.88 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 72.0 x 72.0 mm (2.8 x 2.8 inches) |
| Fuel system | Carburettor. Keihin PWK 36 S AG |
| Ignition | Kokusan digital 2K-3 |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Aluminum |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25 CrMo4 |
| Rake (fork angle) | 26.5° |
| Trail | 112 mm (4.4 inches) |
| Front suspension | WP-USD 48 mm (1.89 inches) |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP-PDS-shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 102.8 kg (226.6 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Ground clearance | 385 mm (15.2 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Other specifications | |
| Starter | Kick |
| Comments | Not available in the USA. |
| Update specs | Report missing specs or required updates. |
