| KTM's profilation of this bike |
| For the 2012 season, the 250 XCF-W features revolutionary new chassis, new bodywork, more power and EFI. New DOHC EFI engine tuned for enduro riding. New cylinder head with optimized intake ports. |
|
General information |
|
Model
|

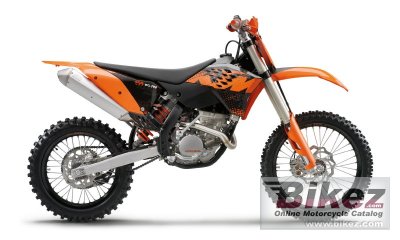

KTM 250 XCF-W Six Days |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
248.6 ccm (15.17 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
13.2:1 |
|
Bore x stroke
|
76.0 x 54.8 mm (3.0 x 2.2 inches) |
|
Fuel system
|
Injection. EFI |
|
Ignition
|
Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan |
|
Lubrication system
|
Pressure circulation lubrication with two rotary pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisc clutch in oil bath/hydraulically activated |
|
Driveline
|
Primary transmission 22:68. Final drive 13:50. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
106.0 kg (233.7 pounds) |
|
Seat height
|
970 mm (38.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
345 mm (13.6 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Other specifications |
|
Color options
|
Orange/black/white |
|
Starter
|
Electric & kick |
