| KTM's profilation of this bike |
| The bike of choice for 3X AMA National Enduro Champion Russell Bobbitt. Outstanding power-to-weight ratio, with electric starter and 6-speed transmission. For 2012, you’ll find completely new bodywork, a new chassis and even more performance. |
|
General information |
|
Motorcycle name
|

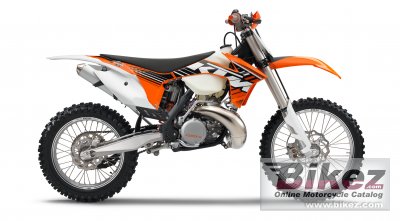

KTM 250 XC |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
249.0 ccm (15.19 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
Reed intake and exhaust control |
|
Compression
|
13.2:1 |
|
Bore x stroke
|
66.4 x 72.0 mm (2.6 x 2.8 inches) |
|
Fuel system
|
Injection |
|
Ignition
|
Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan |
|
Lubrication system
|
Forced oil lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisc clutch in oil bath/hydraulically activated |
|
Driveline
|
Primary transmission 26:72 Secondary ratio 14:50. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA CC |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension 5018 BAVP DCC |
|
Rear wheel travel
|
317 mm (12.5 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc. Brake calipers on floating bearings |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Brake calipers on floating bearings |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
104.0 kg (229.3 pounds) |
|
Seat height
|
992 mm (39.1 inches) If adjustable, lowest setting. |
|
Ground clearance
|
395 mm (15.6 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black/white |
|
Starter
|
Electric & kick |
