KTM 250 XC-W 20122012 KTM 250 XC-W specifications, pictures, reviews and rating |

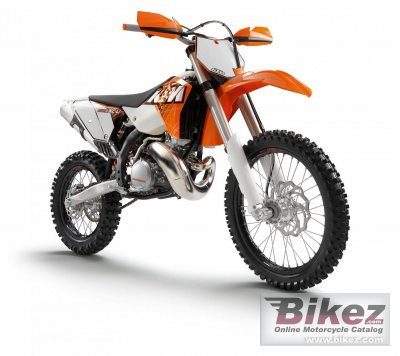

2012 KTM 250 XC-W. Image credits - KTM.
| KTM's profilation of this bike |
| For 2012, this machine received a new frame, swingarm and PDS shock. The updated bodywork stands on premium Excel rims and Dunlop GEOMAX MX51 tires. The power-to-weight ratio is unbeatable and all riders will enjoy the 2-stroke low maintenance costs. |
| General information | |
|---|---|
| Model name | KTM 250 XC-W |
| Model year | 2012 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 249.0 ccm (15.19 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Reed intake and exhaust control |
| Bore x stroke | 66.4 x 72.0 mm (2.6 x 2.8 inches) |
| Ignition | Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan |
| Lubrication system | Mixture oil 1:60 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multidisc clutch in oil bath/hydraulically activated |
| Driveline | Primary transmission 26:72. Secondary ratio 13:50. 5/8 x 1/4´ chain. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc. Brake calipers on floating bearings |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Brake calipers on floating bearings |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 102.0 kg (224.9 pounds) |
| Seat height | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Ground clearance | 355 mm (14.0 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Orange/white/black |
| Starter | Electric & kick |
