| KTM's profilation of this bike |
| With this bike, everything is just right! Extremely robust, with a light frame, optimized running gear and technology which is as straightforward as it is superior – it will immediately leave many four-strokes standing. |
|
General information |
|
Model name
|

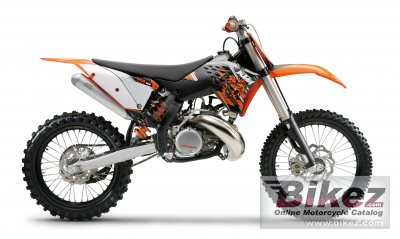

KTM 250 SX |
|
Year of manufacture
|
2009 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
249.0 ccm (15.19 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
66.4 x 72.0 mm (2.6 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 36 S AG |
|
Ignition
|
Kokusan |
|
Lubrication system
|
Mixture oil lubrication 1:60 |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4. Aluminium subframe. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD, 48 mm |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
95.4 kg (210.3 pounds) |
|
Seat height
|
985 mm (38.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
385 mm (15.2 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black |
|
Starter
|
Kick |
