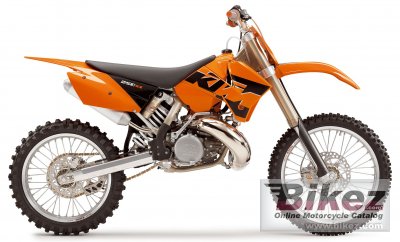

KTM 250 SX 20052005 KTM 250 SX specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The fine blade for all those who know what they´re doing. Power to burn over a broadly usable powerband, perfectly applied due to the finest chassis technology. |
| General information | |
|---|---|
| Model name | KTM 250 SX |
| Year model | 2005 |
| Type | Cross / motocross |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 249.0 ccm (15.19 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Bore x stroke | 66.4 x 72.0 mm (2.6 x 2.8 inches) |
| Fuel system | Carburettor. Keihin PWK 38 S AG |
| Ignition | Kokusan digital 2K-1 |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium molybdenum |
| Rake (fork angle) | 27.0° |
| Trail | 116 mm (4.6 inches) |
| Front suspension | WP-USD 48 mm (1.89´) |
| Rear suspension | WP-PDS shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front brakes | Single disc |
| Diameter | 216 mm (8.5 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 97.7 kg (215.4 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Ground clearance | 385 mm (15.2 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Starter | Kick |
