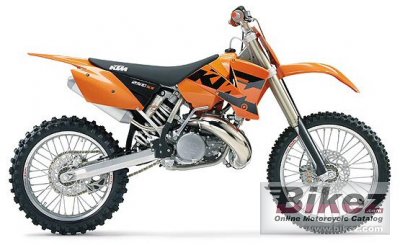

KTM 250 SX 20042004 KTM 250 SX specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The overworked engine characteristic is responsible for a broader powerband and less aggressive power output, together with the triple clamp (off-set 20 mm) which improves the rideability. Manageable 97.7 kg makes the 2-stroke a competition bike for ambitious riders. |
| General information | |
|---|---|
| Model name | KTM 250 SX |
| Model year | 2004 |
| Category | Cross / motocross |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 249.0 ccm (15.19 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Bore x stroke | 66.4 x 72.0 mm (2.6 x 2.8 inches) |
| Fuel system | Carburettor |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium molybdenum |
| Rake (fork angle) | 24.0° |
| Trail | 63 mm (2.5 inches) |
| Front suspension | WP-USD 48/26 MA/PA |
| Rear suspension | WP-PDS-DA shock absorber |
| Front brakes | Single disc |
| Diameter | 216 mm (8.5 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 97.7 kg (215.4 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Alternate seat height | 675 mm (26.6 inches) If adjustable, highest setting. |
| Ground clearance | 385 mm (15.2 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 KTM 250 SX discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2004 KTM 250 SX discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this KTM bike | |
Reliability for the 2004 KTM 250 SX:  (69.5 out of 100)Click here for complete rating. |
|
