| KTM's profilation of this bike |
| KTM rookie Ken Roczen put in an unbelievable performance to discount his old rivals and match KTM’s experience in previous seasons. 19 race wins on the KTM 250 SX-F assured the 17-year-old star from Mattstedt, Germany his first World championship crown. |
|
General information |
|
Model
|

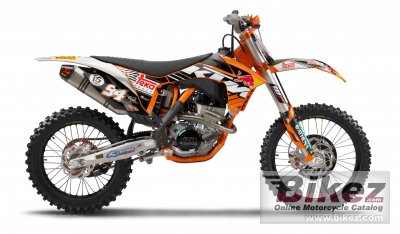

KTM 250 SX-F Roczen Edition |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
248.6 ccm (15.17 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
250 SX-F motor with performance kit |
|
Compression
|
13.2:1 |
|
Bore x stroke
|
76.0 x 54.8 mm (3.0 x 2.2 inches) |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
|
Lubrication system
|
Forced oil lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
13:48 |
|
Exhaust system
|
Akrapovic Factory titanium exhaust manifold and silence |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA CC |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension 5018 BAVP DCC |
|
Rear wheel travel
|
330 mm (13.0 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Black EXCEL-Wheels |
|
Seat
|
SXS seat |
|
Physical measures and capacities |
|
Dry weight
|
103.4 kg (228.0 pounds) |
|
Seat height
|
992 mm (39.1 inches) If adjustable, lowest setting. |
|
Ground clearance
|
375 mm (14.8 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black/white |
|
Starter
|
Electric |
