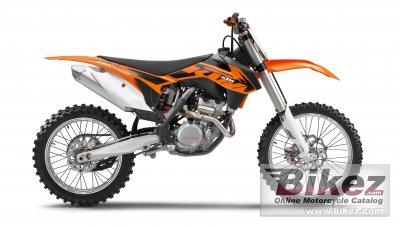

KTM 250 SX-F 20132013 KTM 250 SX-F specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The KTM 250 SX and #8209;F has been an established force in the MX2 World Championship for 8 years now. And the new generation appears with a completely new, even lighter engine and an updated injection system. In other words: a performance package that will redefine the MX2 class. Together with a new frame and new bodywork, the new KTM 250 SX and #8209;F 2013 is a winning bike that dominates the MX2 class. |
| General information | |
|---|---|
| Model | KTM 250 SX-F |
| Year | 2013 |
| Category | Cross / motocross |
| Rating | 3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 249.9 ccm (15.25 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 78.0 x 52.3 mm (3.1 x 2.1 inches) |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Forced oil lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 13:48. Primary drive: 22:68. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA CC |
| Front wheel travel | 205 mm (8.1 inches) |
| Rear suspension | WP Suspension 5018 BAVP DCC |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 210 mm (8.3 inches) |
| Physical measures and capacities | |
| Dry weight | 102.8 kg (226.6 pounds) |
| Seat height | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance | 375 mm (14.8 inches) |
| Wheelbase | 1495 mm (58.9 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Orange/black |
| Starter | Electric |
