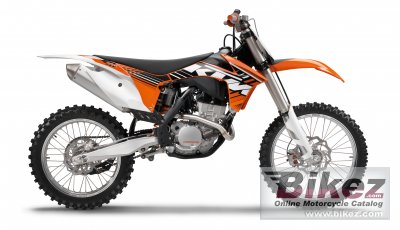

KTM 250 SX-F 20122012 KTM 250 SX-F specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| There is no better proof of the 250 SX-F´s supremacy than three consecutive MX2 world championship titles. But that’s no reason for KTM to rest on its laurels. The new model is now available with a revamped chassis and an electric starter that proves its worth in many situations. |
| General information | |
|---|---|
| Model name | KTM 250 SX-F |
| Year of manufacture | 2012 |
| Type | Enduro / offroad |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 248.6 ccm (15.17 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 13.2:1 |
| Bore x stroke | 76.0 x 54.8 mm (3.0 x 2.2 inches) |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system | Forced oil lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 13:48 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA CC |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension 5018 BAVP DCC |
| Rear wheel travel | 330 mm (13.0 inches) |
| Front tire | 80/100-21 |
| Rear tire | 100/90-19 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 103.4 kg (228.0 pounds) |
| Seat height | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance | 375 mm (14.8 inches) |
| Wheelbase | 1495 mm (58.9 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Orange/black/white |
| Starter | Electric |
