| KTM's profilation of this bike |
| The innovative 250 four-stroke engine shows all of its punch from the lowest to the highest revs. Together with the new super light chassis and the completely new bodywork the 250 SX-F is a real world championship podium winner. |
|
General information |
|
Model
|

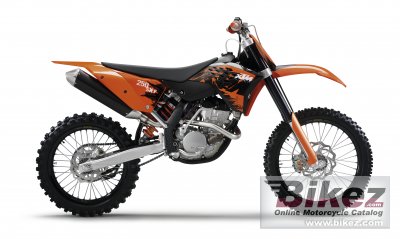

KTM 250 SX-F |
|
Model year
|
2007 |
|
Category
|
Cross / motocross |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
249.5 ccm (15.22 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.8:1 |
|
Bore x stroke
|
76.0 x 55.0 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 39 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital 4K-3A |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4 |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
185 mm (7.3 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
98.5 kg (217.2 pounds) |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
