| KTM's profilation of this bike |
| The KTM 250 SX-F is a real milestone in the company history and certainly the star of the SX models in 2006. Thanks to the innovative engine with double overhead camshafts, the redesigned chassis with forged rocker arm and many other high quality details, it will be hard going for the competitors. |
|
General information |
|
Model name
|

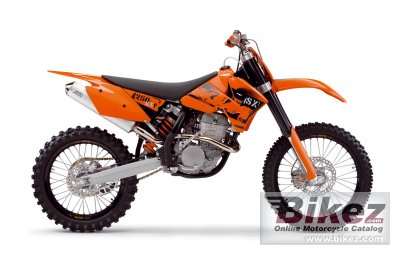

KTM 250 SX-F |
|
Year model
|
2006 |
|
Type
|
Cross / motocross |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
249.5 ccm (15.22 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.8:1 |
|
Bore x stroke
|
66.4 x 72.0 mm (2.6 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 39 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital 4K-3A |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminum |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25 CrMo4 |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
98.5 kg (217.2 pounds) |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 KTM 250 SX-F discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM bike
|
Racing track capabilities for the 2006 KTM 250 SX-F:
 (79.9 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
