| KTM's profilation of this bike |
| A whole package of high-quality special options makes the 250 EXC fit for this ruthless contest, in which more than half the starters bank on KTM every year. 250 EXC Six Days - the genuine article with the orange powder-coated frame of the KTM Factory Team. |
|
General information |
|
Model name
|

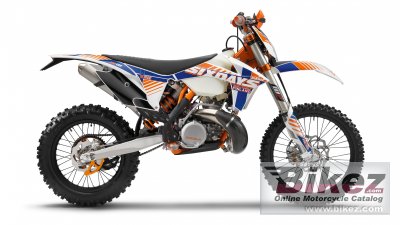

KTM 250 EXC Six Days |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
249.0 ccm (15.19 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Engine details
|
Reed intake and exhaust control |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
66.4 x 72.0 mm (2.6 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 36 S AG |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch / hydraulically operated |
|
Driveline
|
14:50 (13:50) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA PA |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension PDS 5018 DCC |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc. Calipers on floating bearings |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Calipers on floating bearings |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
104.0 kg (229.3 pounds) |
|
Seat height
|
960 mm (37.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
355 mm (14.0 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/white/black/black |
|
Starter
|
Electric & kick |
|
Comments
|
The SIXDAYS version is racing tuned. |
