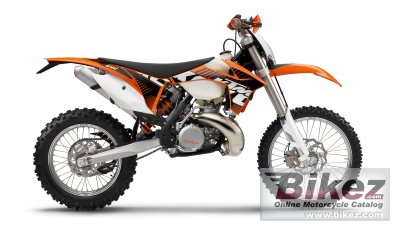

KTM 250 EXC 20122012 KTM 250 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| Whether in the Extreme Enduro or the E2 World Championship, the 250 EXC is the ultimate victory machine. Built with the ideal combination of performance and weight, the serial Erzberg winner is the enduro to beat when the going gets really tough. Improved performance mounted in a completely revamped chassis, with a new frame, upgrades the lightest enduro in the E2 class even further. |
| General information | |
|---|---|
| Model | KTM 250 EXC |
| Model year | 2012 |
| Category | Enduro / offroad |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 249.0 ccm (15.19 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Reed intake and exhaust control |
| Compression | 12.5:1 |
| Bore x stroke | 66.4 x 72.0 mm (2.6 x 2.8 inches) |
| Fuel system | Carburettor. Keihin PWK 36 S AG |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch / hydraulically operated |
| Driveline | 14:50 (13:50). Primary gear 26:72. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 104.0 kg (229.3 pounds) |
| Seat height | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Ground clearance | 355 mm (14.0 inches) |
| Wheelbase | 1482 mm (58.3 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Orange/white/black |
| Starter | Electric & kick |
