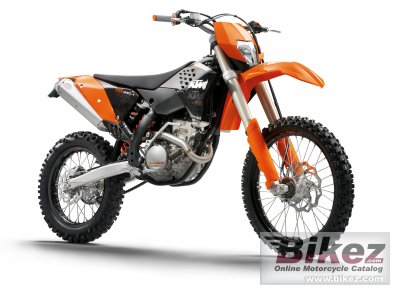

KTM 250 EXC-F 20092009 KTM 250 EXC-F specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The most modern four-valve technology ensures massive thrust from the bottom of the range up into the highest speed ranges. Light, extremely agile and a true muscleman in the small class. |
| General information | |
|---|---|
| Model | KTM 250 EXC-F |
| Year | 2009 |
| Category | Enduro / offroad |
| Rating | 2.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 248.6 ccm (15.17 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.8:1 |
| Bore x stroke | 76.0 x 54.8 mm (3.0 x 2.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin FCR MX 39 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan |
| Lubrication system | Pressure lubrication with 2 oil pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4 steel |
| Rake (fork angle) | 26.5° |
| Front suspension | WP USD |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP PDS shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 105.7 kg (233.0 pounds) |
| Seat height | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance | 380 mm (15.0 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 9.20 litres (2.43 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
