| KTM's profilation of this bike |
| No other bike has left its stamp so dominantly on the Enduro world championships than the new KTM 250 EXC-F. In the E1, Ivan Cervantes has been running rings around the others for so long that spectators are getting dizzy. |
|
General information |
|
Motorcycle name
|

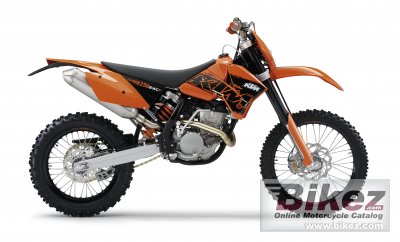

KTM 250 EXC-F |
|
Year model
|
2007 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
249.5 ccm (15.22 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.8:1 |
|
Bore x stroke
|
76.0 x 55.0 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 39 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital 4K-3B |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4 |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD, 48 mm |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
185 mm (7.3 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
107.2 kg (236.3 pounds) |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Other specifications |
|
Starter
|
Kick |
