| KTM's profilation of this bike |
| Feels like a mountain bike until you twist the throttle. For 2012, greater peak power, new airbox and intake snorkel. Oh, and the kick starter is now 80g lighter. Yes, that does make a difference. |
|
General information |
|
Model
|

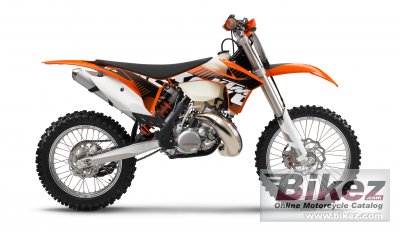

KTM 200 XC-W |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
4.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
193.0 ccm (11.78 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Engine details
|
Reed intake and exhaust control |
|
Bore x stroke
|
64.0 x 60.0 mm (2.5 x 2.4 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan |
|
Lubrication system
|
Mixture oil lubrication 1:60 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisc clutch in oil bath/hydraulically activated |
|
Driveline
|
Primary transmission 23:73. Secondary ratio 14:48. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA PA |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension PDS 5018 DCC |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc. Brake calipers on floating bearings |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Brake calipers on floating bearings |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
95.0 kg (209.4 pounds) |
|
Seat height
|
960 mm (37.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
355 mm (14.0 inches) |
|
Wheelbase
|
1471 mm (57.9 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/white/black |
|
Starter
|
Kick |
