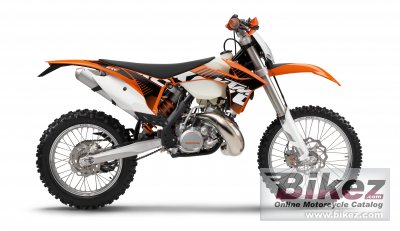

KTM 200 EXC 20122012 KTM 200 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The ideal combination of the playful handling of a 125 and the engine power of a 250cc enduro. A special bike that is not built for a specific Enduro World Championship class, but for all those who want to break fee from the competitive class-based society and who are looking for nothing more than fun, rideability, perfect ergonomics and reasonable costs. |
| General information | |
|---|---|
| Motorcycle name | KTM 200 EXC |
| Year of manufacture | 2012 |
| Type | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 193.0 ccm (11.78 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Compression | 12.5:1 |
| Bore x stroke | 64.0 x 60.0 mm (2.5 x 2.4 inches) |
| Fuel system | Carburettor. Keihin PWK 36 S AG |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet mDouble disk clutch / hydraulically operated |
| Driveline | 14:45 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WPÂ Suspension PDS 5018 DCC |
| Rear wheel travel | 330 mm (13.0 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 97.0 kg (213.8 pounds) |
| Seat height | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Ground clearance | 355 mm (14.0 inches) |
| Wheelbase | 1471 mm (57.9 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Orange/white/black |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 KTM 200 EXC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
