| KTM's profilation of this bike |
| The 200 EXC Enduro combines the simple handling of a 125 with the impressive power of a 250cc bike. A special bike for those who know what they want: the best of both worlds for the all-important edge here and now! |
|
General information |
|
Model
|

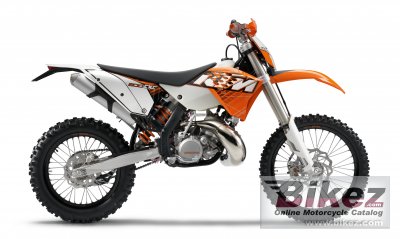

KTM 200 EXC |
|
Year
|
2011 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
193.0 ccm (11.78 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
64.0 x 60.0 mm (2.5 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 36 S AG |
|
Ignition
|
Kokusan |
|
Lubrication system
|
Mixture oil lubrication 1:60 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Driveline
|
14:42 (14:45). Primary drive: 23:73. |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4 steel. Subframe: Aluminium. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
185 mm (7.3 inches) |
|
Rear suspension
|
WP PDS shock absorber |
|
Rear wheel travel
|
185 mm (7.3 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
1.60 x 21in., 2.15 x 18in. Excel |
|
Physical measures and capacities |
|
Dry weight
|
97.0 kg (213.8 pounds) |
|
Seat height
|
985 mm (38.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
390 mm (15.4 inches) |
|
Wheelbase
|
1471 mm (57.9 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/white/black |
|
Starter
|
Kick |
