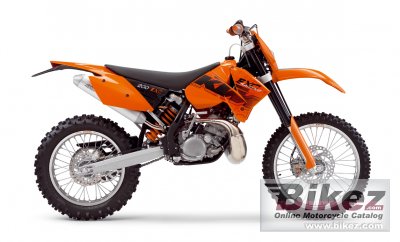

KTM 200 EXC 20062006 KTM 200 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| When it comes to the crunch, the 200 EXC provides riders with good handling, excellent class torque and strong performance - and the tougher the trail, the more the bike likes it. |
| General information | |
|---|---|
| Model | KTM 200 EXC |
| Year | 2006 |
| Category | Enduro / offroad |
| Rating | 4.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 193.0 ccm (11.78 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 64.0 x 60.0 mm (2.5 x 2.4 inches) |
| Fuel system | Carburettor. Keihin PWK 38 AG |
| Ignition | Kokusan digital 2K-3 |
| Lubrication system | Mixture oil lubrication 1:40 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Aluminum |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25 CrMo4 |
| Rake (fork angle) | 27.0° |
| Trail | 112 mm (4.4 inches) |
| Front suspension | WP-USD 48 mm (1.89 inches) |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP-PDS-shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 99.8 kg (220.0 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Ground clearance | 390 mm (15.4 inches) |
| Wheelbase | 1471 mm (57.9 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Other specifications | |
| Starter | Kick |
| Comments | Not available in the USA. |
