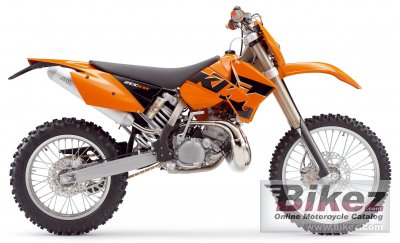

KTM 200 EXC 20052005 KTM 200 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The best of both worlds. The weight of a 125 and pretty much the power of a 250. And even if it doesn´t fit into the typical capacity classes, the 200 EXC is the ideal bike for anyone who is on the lookout for an extremely light implement with great torque and ample power reserves. The tougher the terrain the more its merits come into their own. |
| General information | |
|---|---|
| Model | KTM 200 EXC |
| Year model | 2005 |
| Type | Cross / motocross |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 193.0 ccm (11.78 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 64.0 x 60.0 mm (2.5 x 2.4 inches) |
| Fuel system | Carburettor. Keihin PWK 38 AG |
| Ignition | Kokusan digital 2K-3 |
| Lubrication system | Mixture oil lubrication 1:40 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium molybdenum |
| Rake (fork angle) | 27.0° |
| Trail | 116 mm (4.6 inches) |
| Front suspension | WP-USD 48 mm |
| Rear suspension | WP-PDS-shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front brakes | Single disc |
| Diameter | 216 mm (8.5 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 99.8 kg (220.0 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Ground clearance | 390 mm (15.4 inches) |
| Wheelbase | 1471 mm (57.9 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Other specifications | |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 KTM 200 EXC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2005 KTM 200 EXC for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Racing track capabilities for the 2005 KTM 200 EXC:  (70.4 out of 100)Click here for complete rating. |
|
