KTM 200 EXC 20042004 KTM 200 EXC specifications, pictures, reviews and rating |

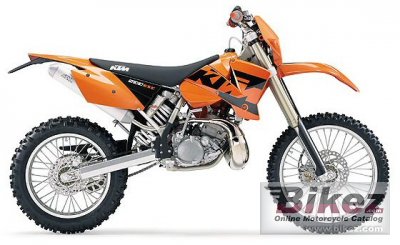

2004 KTM 200 EXC. Image credits - KTM.
| KTM's profilation of this bike |
| Handling and weight of a 125cc motorcycle but with the wider power band of the 200cc engine. A thoroughgoing model for advanced riders and license free Enduro competitions. |
| General information | |
|---|---|
| Model name | KTM 200 EXC |
| Year model | 2004 |
| Type | Enduro / offroad |
| Rating | 4.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 193.0 ccm (11.78 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 64.0 x 60.0 mm (2.5 x 2.4 inches) |
| Fuel system | Carburettor |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium molybdenum |
| Trail | 63 mm (2.5 inches) |
| Front suspension | WP-USD 48 MA |
| Rear suspension | WP-PDS-shock absorber |
| Front brakes | Single disc |
| Diameter | 216 mm (8.5 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 102.4 kg (225.8 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Alternate seat height | 675 mm (26.6 inches) If adjustable, highest setting. |
| Ground clearance | 390 mm (15.4 inches) |
| Wheelbase | 1471 mm (57.9 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 KTM 200 EXC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2004 KTM 200 EXC discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this KTM bike | |
Fun-factor for the 2004 KTM 200 EXC:  (90.6 out of 100)Click here for complete rating. |
|
