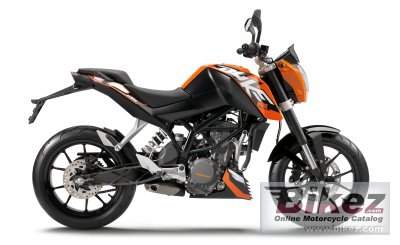

KTM 200 Duke 20122012 KTM 200 Duke specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| 200 Duke: Lightness rediscovered - or the 125 Duke for grown-ups. Maximum riding fun, powerful propulsion and optimum user value thanks to thoroughbred motorcycle technology. Featherweight chassis with high-quality components and first-class brakes. |
| General information | |
|---|---|
| Motorcycle name | KTM 200 Duke |
| Year | 2012 |
| Category | Naked bike |
| Rating | 3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 200.0 ccm (12.20 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 20.6 HP (15.0 kW)) @ 10500 RPM |
| Torque | 12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 8000 RPM |
| Bore x stroke | 72.0 x 49.0 mm (2.8 x 1.9 inches) |
| Fuel system | Injection |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Forced oil lubrication with 1 rotor pump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Clutch in oil bath / mechanically operated |
| Driveline | 22:71. Secondary gear ratio 14:43. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular space frame made from steel tubes, powder-coated |
| Rake (fork angle) | 25.0° |
| Trail | 100 mm (3.9 inches) |
| Front suspension | WP Suspension 4357 |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | WP Suspension 4618 EM |
| Rear wheel travel | 150 mm (5.9 inches) |
| Front brakes | Double disc. Two-pot brake caliper |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 230 mm (9.1 inches) |
| Physical measures and capacities | |
| Dry weight | 125.0 kg (275.6 pounds) |
| Power/weight ratio | 0.1648 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Ground clearance | 170 mm (6.7 inches) |
| Wheelbase | 1361 mm (53.6 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Other specifications | |
| Color options | Black/orange |
| Starter | Electric |
