| KTM's profilation of this bike |
| The most agile bike of the XC model line. This lightweight two-stroke machine is the most fun of the bunch – whether on the track or the trail you won’t be disappointed in its ability to do-it-all while keeping the fun factor pegged. |
| General information |
|---|

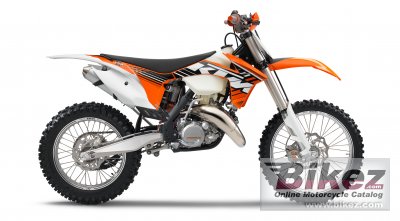

| Model | KTM 150 XC |
| Year | 2012 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 143.6 ccm (8.76 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Reed intake and exhaust control |
| Bore x stroke | 56.0 x 58.4 mm (2.2 x 2.3 inches) |
| Fuel system | Carburettor |
| Ignition | Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan |
| Lubrication system | Mixture oil lubrication 1:40 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multidisc clutch in oil bath/hydraulically activated |
| Driveline | 13:50. Primary drive: 23:73. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA CC |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension 5018 BAVP DCC |
| Rear wheel travel | 317 mm (12.5 inches) |
| Front tire | 80/100-21 |
| Rear tire | 100/90-19 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 94.2 kg (207.7 pounds) |
| Seat height | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance | 395 mm (15.6 inches) |
| Wheelbase | 1480 mm (58.3 inches) |
| Fuel capacity | 11.50 litres (3.04 US gallons) |
| Other specifications |
|---|
| Color options | Orange/black/white |
| Starter | Kick |
