| KTM's profilation of this bike |
| TWith even better performance than before, a new frame and new rear suspension, the 150 SX can exploit its weight advantage over the competition to the full. So well-equipped that you can really show your teeth to many a 250cc four-stroke machine. |
| General information |
|---|

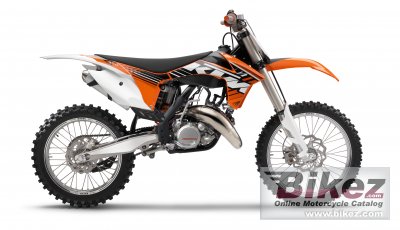

| Model: | KTM 150 SX |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 143.6 ccm (8.76 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 56.0 x 58.4 mm (2.2 x 2.3 inches) |
| Fuel system: | Carburettor. Keihin PWK 38S AG |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system: | Mixture oil lubrication 1:40 |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet mDouble disk clutch / hydraulically operated |
| Driveline: | 14:50 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle): | 26.5° |
| Front suspension: | WP Suspension Up Side Down 4860 MXMA CC |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP Suspension 5018 BAVP DCC |
| Rear wheel travel: | 330 mm (13.0 inches) |
| Front tyre: | 80/100-21 |
| Rear tyre: | 100/90-19 |
| Front brakes: | Single disc |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 91.6 kg (201.9 pounds) |
| Seat height: | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance: | 395 mm (15.6 inches) |
| Wheelbase: | 1480 mm (58.3 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Other specifications |
|---|
| Color options: | Orange/black/white |
| Starter: | Kick |
