KTM 150 SX 2011

2011 KTM 150 SX specifications, pictures, reviews and rating

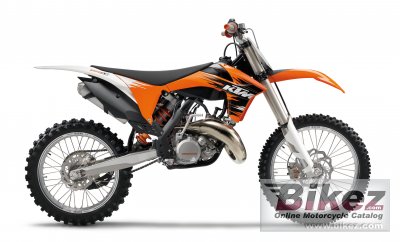

2011 KTM 150 SX. Picture credits - KTM. Submit more pictures.

2011 KTM 150 SX

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Insurance quotes
Finance options
Tip a friend
List related bikes

KTM's profilation of this bike

The perfect combination of the playful handling of a 125 coupled with engine power that comes close to that of a 250. Alongside the completely new bodywork for all 2-stroke models, the 150 SX has been equipped with a new silencer, new airbox and the optimised intake flange between filter and carburettor.

General information
Model:	KTM 150 SX
Year:	2011
Category:	Enduro / offroad
Rating:	3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement:	143.6 ccm (8.76 cubic inches)
Engine type:	Single cylinder, two-stroke
Bore x stroke:	56.0 x 58.4 mm (2.2 x 2.3 inches)
Fuel system:	Carburettor. Keihin PWK 38S AG
Ignition:	Kokusan
Lubrication system:	Mixture oil lubrication 1:40
Cooling system:	Liquid
Gearbox:	6-speed
Transmission type, final drive:	Chain
Clutch:	Wet mDouble disk clutch, operated hydraulically
Driveline:	14:50. Primary drive: 23:73.
Exhaust system:	Aluminium
Chassis, suspension, brakes and wheels
Frame type:	Cental double-cradle-type 25CrMo4. Subframe: Aluminium.
Rake (fork angle):	26.5°
Front suspension:	WP USD 48 mm (1.89 in)
Front wheel travel:	185 mm (7.3 inches)
Rear suspension:	WP PDS shock absorber
Rear wheel travel:	185 mm (7.3 inches)
Front tyre:	80/100-21
Rear tyre:	100/90-19
Front brakes:	Single disc
Diameter:	260 mm (10.2 inches)
Rear brakes:	Single disc
Diameter:	220 mm (8.7 inches)
Wheels:	1,60 x 21in., 2,15 x 19in. Excel
Physical measures and capacities
Dry weight:	88.8 kg (195.8 pounds)
Seat height:	992 mm (39.1 inches) If adjustable, lowest setting.
Ground clearance:	385 mm (15.2 inches)
Wheelbase:	1480 mm (58.3 inches)
Fuel capacity:	7.50 litres (1.98 gallons)
Other specifications
Color options:	Orange/black/white
Starter:	Kick
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Finance options	Compare US motorcycle loan quotes from the nation's top providers.
Parts finder	Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries. Also check out our overview of motorcycle webshops at Bikez.info.
Dirt-bike parts	Dirt-bike parts and gear available from Mega Motor Madness. Ships to most countries.
Ask questions	Join the 11 KTM 150 SX discussion group or the general KTM discussion group.
Related bikes	List related bikes for comparison of specs.
