KTM's profilation of this bike |
The perfect combination: the playful handling of a 125 with nearly as much engine power as a 250. The additionally optimised chassis with new geometry makes the 150 SX a real yardstick for all opponents. |
General information |
---|

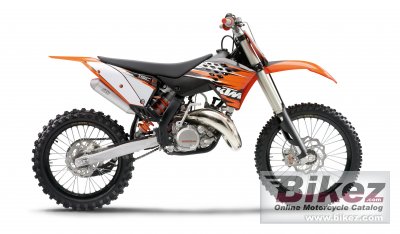

Model: | KTM 150 SX |
Year: | 2010 |
Category: | Enduro / offroad |
Rating: | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement: | 143.6 ccm (8.76 cubic inches) |
Engine type: | Single cylinder, two-stroke |
Bore x stroke: | 56.0 x 58.4 mm (2.2 x 2.3 inches) |
Fuel system: | Carburettor. Keihin PWK 38S AG |
Ignition: | Kokusan |
Lubrication system: | Mixture oil lubrication 1:40 |
Cooling system: | Liquid |
Gearbox: | 6-speed |
Transmission type, final drive: | Chain |
Clutch: | Wet mDouble disk clutch, operated hydraulically |
Chassis, suspension, brakes and wheels |
---|
Frame type: | Cental double-cradle-type 25CrMo4 |
Rake (fork angle): | 26.5° |
Front suspension: | WP USD 48 mm fork |
Front wheel travel: | 300 mm (11.8 inches) |
Rear suspension: | WP PDS shock absorber |
Rear wheel travel: | 335 mm (13.2 inches) |
Front tyre: | 80/100-21 |
Rear tyre: | 100/90-19 |
Front brakes: | Single disc |
Rear brakes: | Single disc |
Physical measures and capacities |
---|
Dry weight: | 90.8 kg (200.2 pounds) |
Seat height: | 985 mm (38.8 inches) If adjustable, lowest setting. |
Ground clearance: | 390 mm (15.4 inches) |
Wheelbase: | 1471 mm (57.9 inches) |
Fuel capacity: | 8.00 litres (2.11 gallons) |
Other specifications |
---|
Color options: | Orange |
Comments: | Offroad Competition model |
