KTM 150 SX 20092009 KTM 150 SX specifications, pictures, reviews and rating |

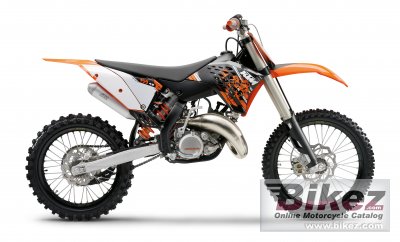

 2009 KTM 150 SX. Picture credits - KTM. Submit more pictures.
|
|
| KTM's profilation of this bike |
| The 150 SX unifies the playful handling of a 125 with a level of power which comes close to that of a 250. The extensive overhaul of engine and chassis and its unbeatable ease of servicing make this bike a real yardstick for all opponents. |
| General information | |
|---|---|
| Model: | KTM 150 SX |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement: | 143.6 ccm (8.76 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 56.0 x 58.5 mm (2.2 x 2.3 inches) |
| Fuel system: | Carburettor. Keihin PWK 39 |
| Ignition: | Kokusan |
| Lubrication system: | Mixture oil lubrication 1:40 |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Transmission type, final drive: | Chain |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Cental double-cradle-type 25 CrMo4. Aluminium subframe. |
| Rake (fork angle): | 27.0° |
| Front suspension: | WP USD |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP PDS shock absorber |
| Rear wheel travel: | 335 mm (13.2 inches) |
| Front tyre: | 80/100-21 |
| Rear tyre: | 100/90-19 |
| Front brakes: | Single disc |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight: | 90.8 kg (200.2 pounds) |
| Seat height: | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 390 mm (15.4 inches) |
| Wheelbase: | 1471 mm (57.9 inches) |
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Other specifications | |
| Color options: | Orange/black |
| Starter: | Kick |
