| KTM's profilation of this bike |

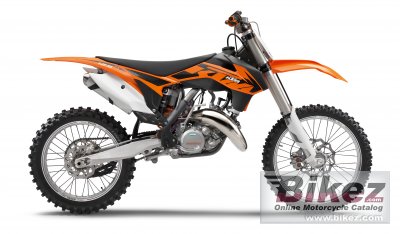

| How can you identify future champions? By the bike they ride. The KTM 125 SX has been the springboard to a professional career for many a hungry young rider. And this will continue to be the case, what with new bodywork and significantly revamped suspension. Driven by the powerful 2-stroke engine with exhaust control system and 6-speed transmission, the lightest bike in its class has long been at the top of the pile. |
| General information |
|---|
| Model | KTM 125 SX |
| Year | 2013 |
| Category | Cross / motocross |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 124.8 ccm (7.62 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Reed intake. |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 13:50. Primary drive: 23:73. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA CC |
| Front wheel travel | 205 mm (8.1 inches) |
| Rear suspension | WP Suspension 5018 BAVP DCC |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 210 mm (8.3 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 90.8 kg (200.2 pounds) |
| Seat height | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance | 395 mm (15.6 inches) |
| Wheelbase | 1480 mm (58.3 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications |
|---|
| Color options | Orange/black |
| Starter | Kick |
