KTM 125 SX 20102010 KTM 125 SX specifications, pictures, reviews and rating |

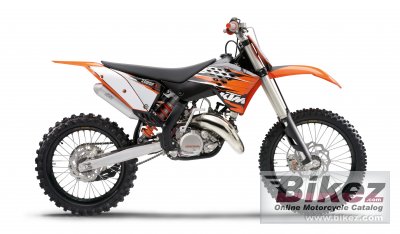

 2010 KTM 125 SX. Picture credits - KTM. Submit more pictures.
|
|
| KTM's profilation of this bike |
| Anyone looking for a winning bike in the MX2 class is hard pushed to pass by the 125 SX. And we mean that literally! An optimally balanced chassis sets the standard for the class. |
| General information | |
|---|---|
| Model: | KTM 125 SX |
| Year: | 2010 |
| Category: | Enduro / offroad |
| Rating: | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement: | 124.8 ccm (7.62 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Keihin PWK 39 |
| Ignition: | Kokusan |
| Lubrication system: | Mixture oil lubrication 1:40 |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Central double-cradle-type 25CrMo4 |
| Rake (fork angle): | 27.0° |
| Front suspension: | WP USD, 43 mm |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP PDS shock absorber |
| Rear wheel travel: | 335 mm (13.2 inches) |
| Front tyre: | 80/100-21 |
| Rear tyre: | 100/90-19 |
| Front brakes: | Single disc |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight: | 90.8 kg (200.2 pounds) |
| Seat height: | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 390 mm (15.4 inches) |
| Wheelbase: | 1471 mm (57.9 inches) |
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Other specifications | |
| Color options: | Orange |
| Starter: | Kick |
| Comments: | Offroad Competition model |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts |
| Dirt-bike parts | Dirt-bike parts and gear available from Mega Motor Madness |
| Ask questions | Join the 10 KTM 125 SX discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2010 KTM 125 SX discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this KTM bike | |
Reliability for the 2010 KTM 125 SX:  (69.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
|
