KTM 125 SX 20092009 KTM 125 SX specifications, pictures, reviews and rating |

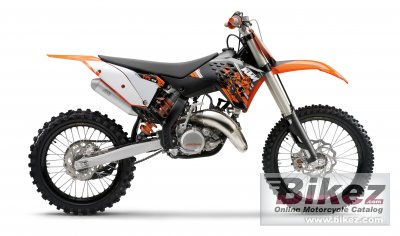

2009 KTM 125 SX. Image credits - KTM.
| KTM's profilation of this bike |
| The new 125 SX sets the standards in this field, and not just with its optimized chassis. It is ultra-light, super-agile and also convinces with a level of power which most four-strokes will find hard to beat. |
| General information | |
|---|---|
| Motorcycle name | KTM 125 SX |
| Year model | 2009 |
| Type | Enduro / offroad |
| Rating | 3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.8 ccm (7.62 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Keihin PWK 39 |
| Ignition | Kokusan |
| Lubrication system | Mixture oil lubrication 1:40 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4 |
| Rake (fork angle) | 27.0° |
| Front suspension | WP USD, 43 mm |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP PDS shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 80/100-21 |
| Rear tire | 100/90-19 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 90.8 kg (200.2 pounds) |
| Seat height | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance | 390 mm (15.4 inches) |
| Wheelbase | 1471 mm (57.9 inches) |
| Fuel capacity | 8.00 litres (2.11 US gallons) |
| Other specifications | |
| Color options | Orange/black |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 KTM 125 SX discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
