KTM 125 SX 20082008 KTM 125 SX specifications, pictures, reviews and rating |

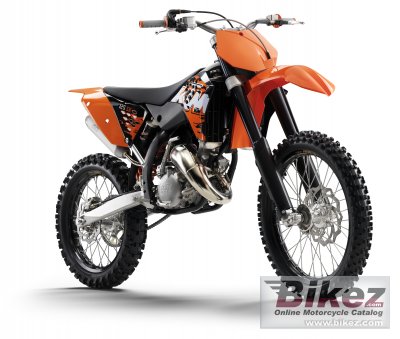

 2008 KTM 125 SX. Picture credits - KTM. Submit more pictures.
|
| KTM's profilation of this bike |
| Anybody who’s looking for an extremely light and agile two-stroke cross bike that’s got so much power it makes even four-strokes eat its dust… can stop looking! |
| General information | |
|---|---|
| Model: | KTM 125 SX |
| Year: | 2008 |
| Category: | Enduro / offroad |
| Rating: | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement: | 124.8 ccm (7.62 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Keihin PWK 39 |
| Ignition: | Kokusan digital magneto CDI |
| Lubrication system: | Mixture oil lubrication 1:40 |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Central double-cradle-type 25CrMo4 |
| Rake (fork angle): | 27.0° |
| Front suspension: | WP USD Ø 43 mm (1.69 |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP monoshock PDS |
| Rear wheel travel: | 335 mm (13.2 inches) |
| Front tyre: | 80/100-21 |
| Rear tyre: | 100/90-19 |
| Front brakes: | Single disc |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight: | 90.8 kg (200.2 pounds) |
| Seat height: | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 390 mm (15.4 inches) |
| Wheelbase: | 1471 mm (57.9 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Other specifications | |
| Starter: | Kick |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts |
| Dirt-bike parts | Dirt-bike parts and gear available from Mega Motor Madness |
| Ask questions | Join the 08 KTM 125 SX discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2008 KTM 125 SX for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this KTM bike | |
Fun-factor for the 2008 KTM 125 SX:  (82.7 out of 100)Click here for complete rating. You can also compare bikes. |
|
|
